The application of PVC sheet materials in the medical field

PVC Sheet: The Versatile Plastic Powering Modern Healthcare
PVC (Polyvinyl Chloride) sheets have emerged as one of the most widely used plastic materials in the medical field, owing to their unique physicochemical properties, cost efficiency, and processing versatility. From disposable IV bags to medical catheters, from packaging materials to hemodialysis components, PVC sheets consistently meet the healthcare industry's stringent demands for safety, functionality, and economy through formula optimization and process innovation. This article systematically analyzes the value and potential of PVC sheets in medical applications from three perspectives: material properties, core application scenarios, and technological trends.

---

I. Core Performance Advantages of PVC Sheets

1. Chemical Stability & Biocompatibility
   The chlorine atoms in PVC molecular chains provide exceptional chemical resistance, enabling long-term tolerance to physiological saline, glucose solutions, and common disinfectants (e.g., ethanol, hydrogen peroxide). With medical-grade additives like DEHP alternatives (TOTM, ATBC), calcium-zinc composite stabilizers, and lubricants, PVC sheets demonstrate enhanced biocompatibility compliant with ISO 10993 standards for cytotoxicity, sensitization, and skin irritation. For instance, a branded PVC IV bag maintained >95% cell viability in 7-day extraction tests, surpassing the 80% standard requirement.

2. Optical Clarity & Flexibility Balance
   PVC sheets achieve hardness modulation from rigid to flexible (Shore A 60-90) by adjusting plasticizer content (20%-40%). Medical-grade PVC maintains both flexibility (enduring repeated folding for IV/blood bags) and high transparency (≥85% light transmittance) for fluid monitoring. A 0.3mm PVC blood bag retains flexibility at -20°C, eliminating fracture risks.

3. Processing Efficiency & Cost Benefits
   Adaptable to extrusion, calendering, and blow molding processes with wide thermal processing windows (160-200°C) and rapid cycles (≤5 sec/unit), PVC sheets reduce raw material costs by 40%-60% compared to TPU/silicone. Industry data shows PVC IV sets achieve 65% lower energy consumption and 52% cost reduction versus silicone alternatives.

4. Sterilizability & Long-Term Stability
   PVC withstands EO gas, gamma radiation, and steam sterilization with <10% post-sterilization performance loss. Chlorine atoms create natural antimicrobial barriers, reducing microbial adhesion by 70% vs. polyethylene. Properly stored PVC devices maintain 5+ year shelf lives, outperforming most polymers.

---

II. Key Medical Applications

1. Infusion & Transfusion Systems

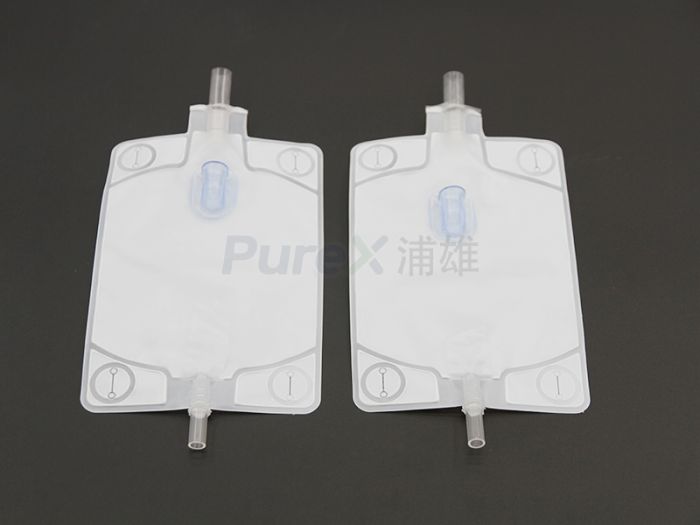

   As core material for IV/blood/nutrition bags, PVC's flexibility enables gravity-driven fluid delivery without air ingress, while transparency allows visual contamination checks. A 0.5mm PVC blood bag withstands 300mmHg pressure with <0.1% hemolysis rate (vs. 0.3% for PP bags in clinical trials).

2. Medical Catheters & Tubing
   PVC-extruded catheters feature smooth surfaces (Ra≤0.8μm) to minimize thrombogenesis and low-friction formulations (calcium stearate lubricants). PVC gastric tubes show 40% lower insertion resistance than silicone alternatives, enhancing patient comfort. Their ≤5mm bend radius suits complex anatomical pathways.

3. Medical Packaging
   Dominating applications include dialysis paper/PVC laminates, blister trays, and sterilization pouches. With O₂ transmission ≤10cm&sup3;/m&sup2;·24h·0.1MPa and heat seal strength ≥8N/15mm, PVC/PE surgical packs maintain 99.9% post-autoclave integrity vs. 95% for aluminum composites.

4. Hemodialysis Components
   Critical for dialyzers, tubing, and AV fistula needles, PVC's blood compatibility improves through surface modifications like heparin coatings. Clinical data shows 30% less platelet depletion and 15% higher dialysis efficiency versus polysulfone systems. PVC's -40°C cold resistance ensures dialysis fluid packaging integrity.

5. Disposable Medical Supplies
   PVC enables cost-effective masks, gloves, and protective apparel with anti-static properties (surface resistance ≤10⁹Ω) and liquid repellency (contact angle ≥90°). PVC gowns withstand >120 minutes in simulated blood splash tests, meeting high-risk exposure requirements.
